5) VSLAM and RealSense setup and usage on AGX Orin

Connect the camera to any USB-A connector on the AGX Orin (USB-A 3.2 are recommended).

5.1) Intel RealSense cameras

Check how the camera is detected

List only the USB devices with VID 0x8086 (Intel).

lsusb -d 8086:

The output should be similar to:

Bus 002 Device 005: ID 8086:0b3a Intel Corp. Intel(R) RealSense(TM) Depth Camera 435i

where 0x0B3A is the PID of RealSense D435i.

Install the packages

Register the server’s public key:

sudo apt-key adv --keyserver keyserver.ubuntu.com --recv-key F6E65AC044F831AC80A06380C8B3A55A6F3EFCDE || sudo apt-key adv --keyserver hkp://keyserver.ubuntu.com:80 --recv-key F6E65AC044F831AC80A06380C8B3A55A6F3EFCDE

Add the server to the list of repositories:

sudo add-apt-repository "deb https://librealsense.intel.com/Debian/apt-repo $(lsb_release -cs) main" -u

Install the SDK:

sudo apt install librealsense2-utils
sudo apt install librealsense2-dev

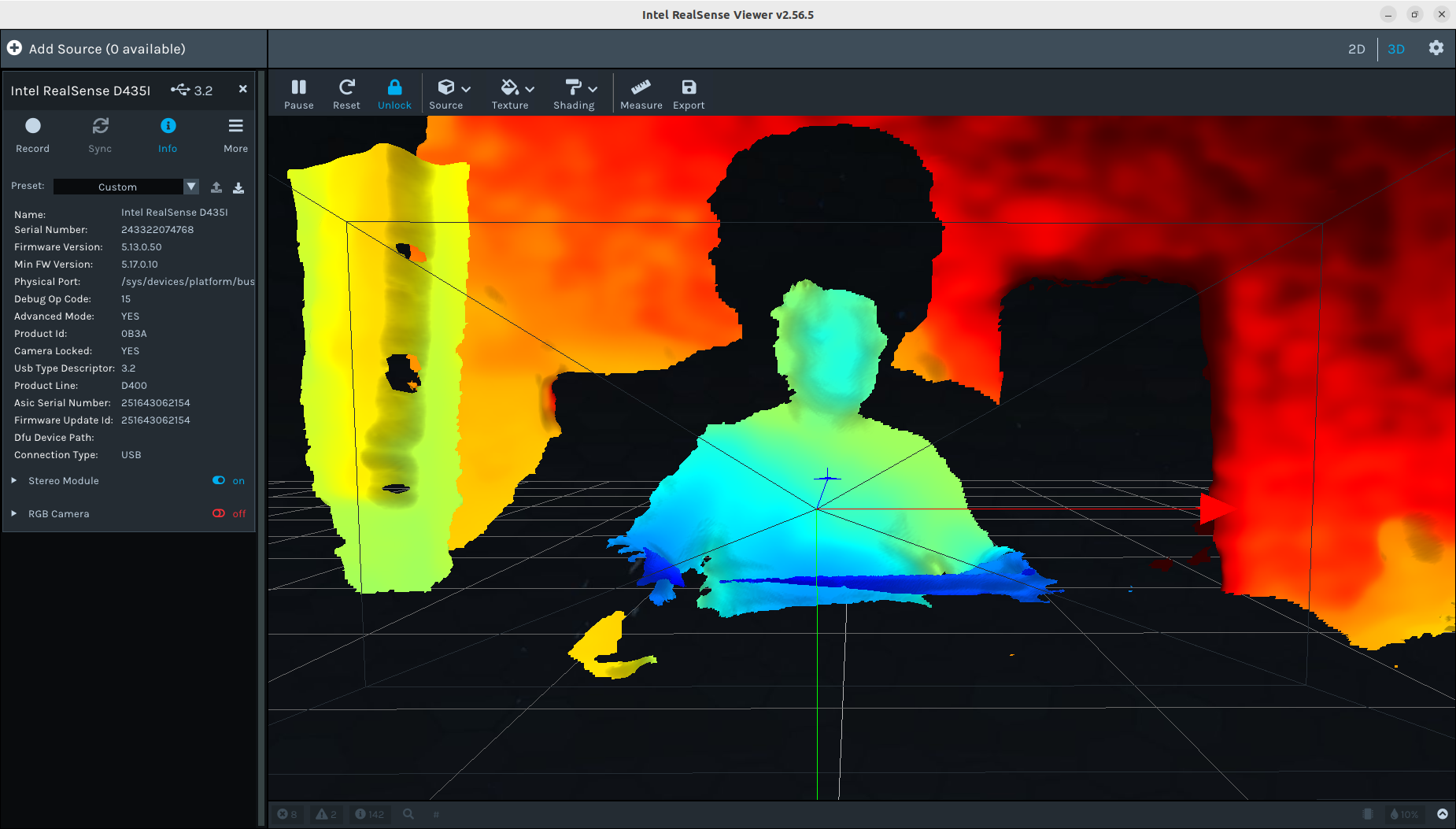

Test the functionality with RealSense Viewer

realsense-viewer

Note

This is the application running in “native mode”, outside the docker.

Tip

The application version is 2.56.5
Note the current firmware version, which is 5.13.0.50. The last firmware version is reported as 5.17.0.10.

Important

There is no IMU group in the left panel, under the Stereo Module and RGB Camera.

Load the Docker

cd $ISAAC_ROS_WS
source ./install/setup.bash
cd ./src/isaac_ros_common
./scripts/run_dev.sh

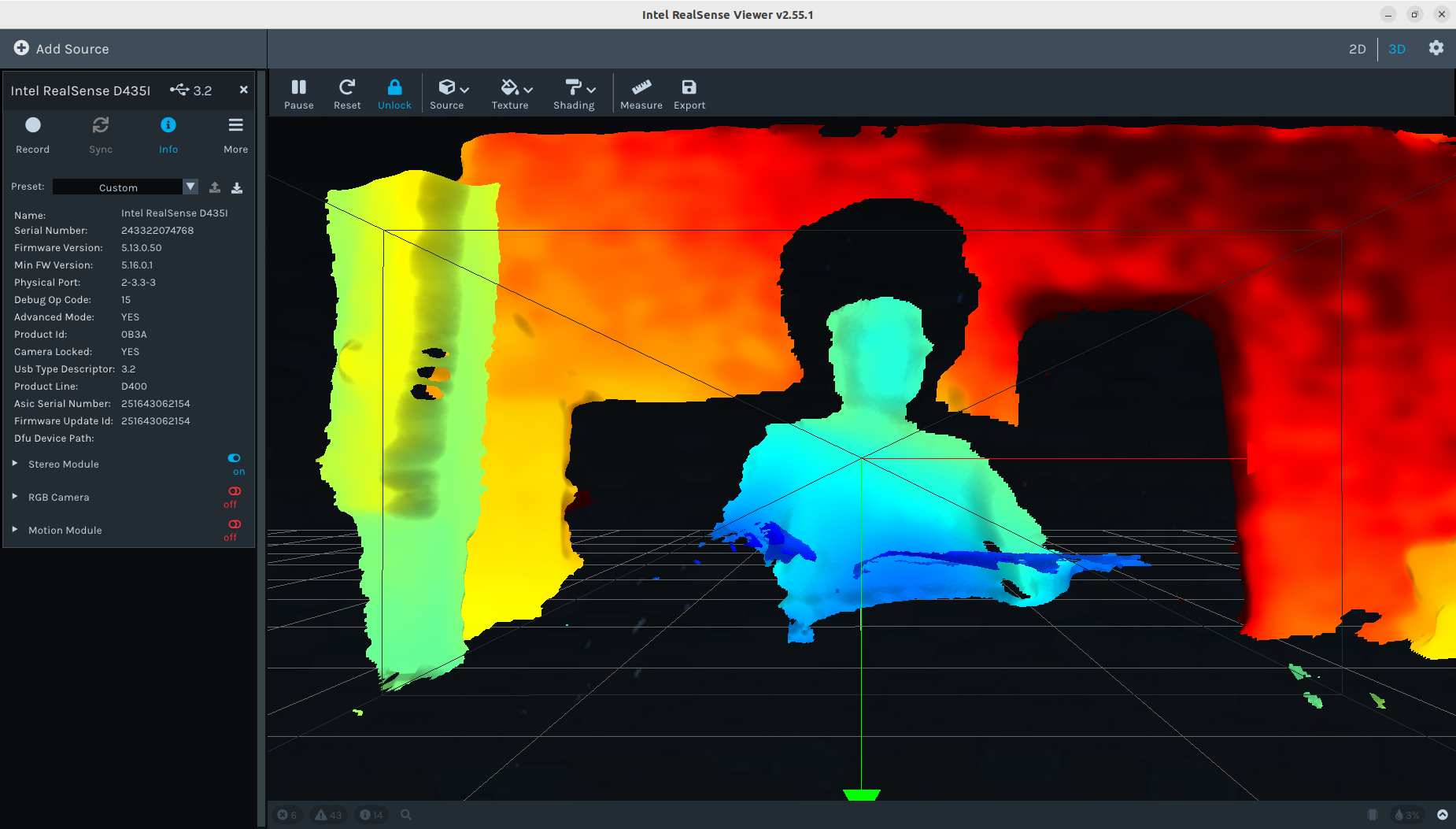

Inside the container, relaunch the viewer:

realsense-viewer

Tip

The application version is 2.55.1
Note that the last firmware version is reported as 5.16.0.1, which is different than the non-docker one (5.17.0.10).

Important

There is a Motion Module group in the left panel, under the Stereo Module and RGB Camera.

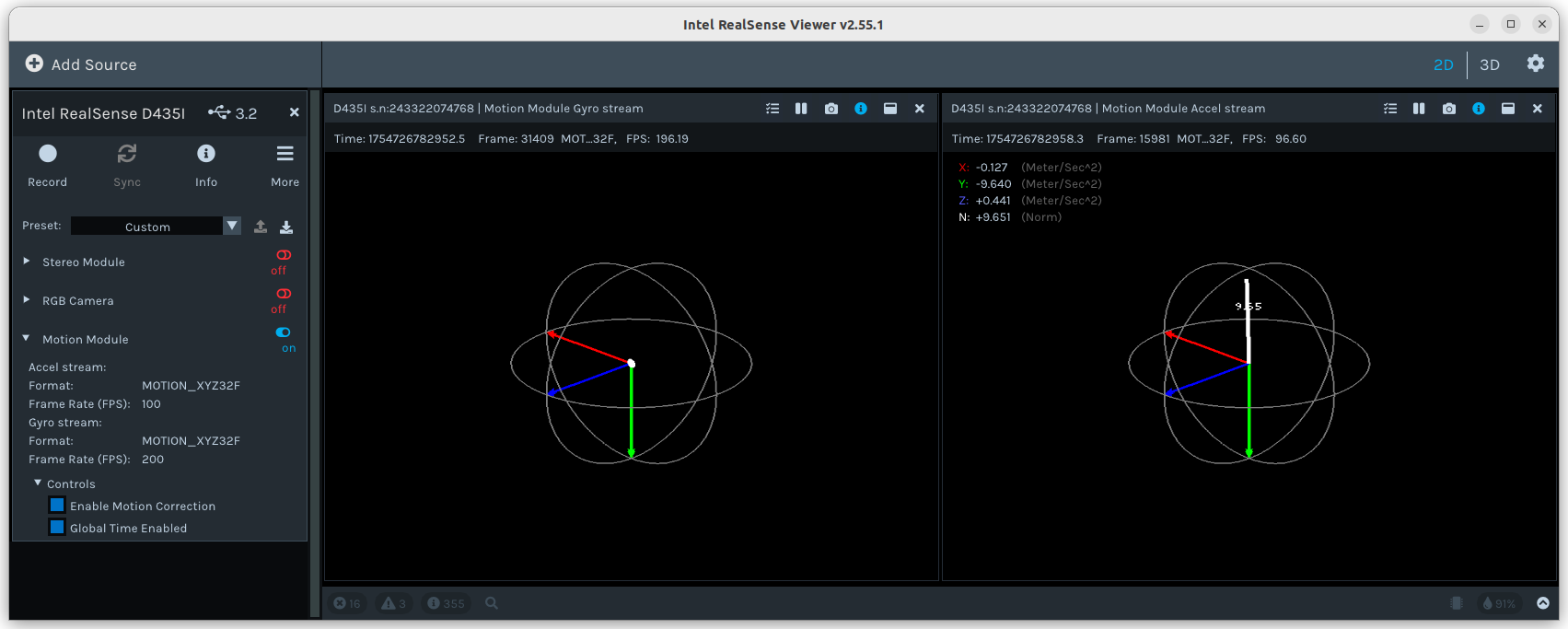

Select the 2D view mode and enable the Motion Module. Rotate the camera module and check how gyroscope and accelerometer values change.

RealSense accelerometer and gyroscope in realsense-viewer

Test the VSLAM ROS nodes

In the existing terminal run:

sudo apt update
sudo apt install -y ros-humble-isaac-ros-visual-slam ros-humble-isaac-ros-examples ros-humble-isaac-ros-realsense

Start a quick VSLAM demo:

ros2 launch isaac_ros_examples isaac_ros_examples.launch.py launch_fragments:=realsense_stereo_rect,visual_slam \
interface_specs_file:=${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_visual_slam/quickstart_interface_specs.json \
base_frame:=camera_link camera_optical_frames:="['camera_infra1_optical_frame', 'camera_infra2_optical_frame']"

Warning

Note that closing this terminal will unload the docker from all terminals which are created in the following, and where docker has been loaded.

Open another terminal and run:

cd $ISAAC_ROS_WS
source ./install/setup.bash
cd ./src/isaac_ros_common
./scripts/run_dev.sh

rviz2 -d $(ros2 pkg prefix isaac_ros_visual_slam --share)/rviz/default.cfg.rviz

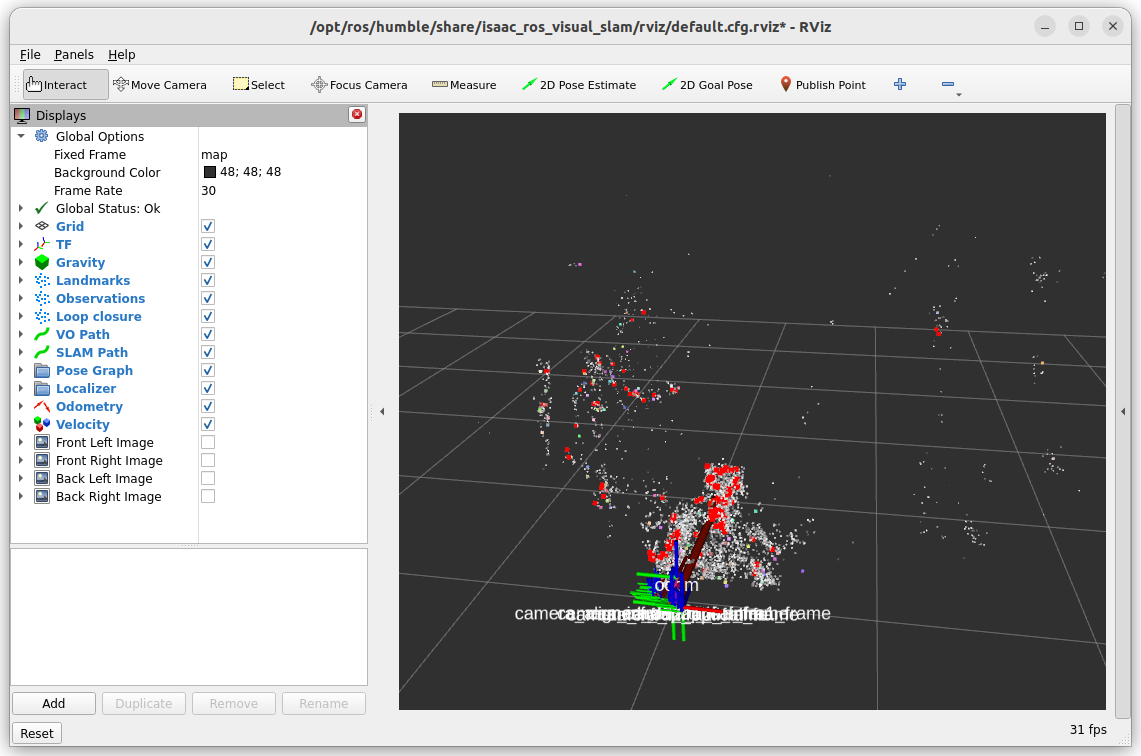

The RViz scene, displaying the point cloud, should look similar to:

You can also check the available topics:

ros2 topic list

The output should be similar to:

/diagnostics
/extrinsics/depth_to_infra1
/extrinsics/depth_to_infra2
/imu
/infra1/image_rect_raw/compressed
/infra1/image_rect_raw/compressedDepth
/infra1/image_rect_raw/theora
/infra1/image_rect_raw_mono
/infra1/image_rect_raw_mono/nitros
/infra1/metadata
/infra2/image_rect_raw/compressed
/infra2/image_rect_raw/compressedDepth
/infra2/image_rect_raw/theora
/infra2/image_rect_raw_mono
/infra2/image_rect_raw_mono/nitros
/infra2/metadata
/left/camera_info_rect
/left/image_rect
/left/image_rect/nitros
/left/image_rect_mono
/left/image_rect_mono/nitros
/parameter_events
/right/camera_info_rect
/right/image_rect
/right/image_rect/nitros
/right/image_rect_mono
/right/image_rect_mono/nitros
/rosout
/tf
/tf_static
/visual_slam/initial_pose
/visual_slam/status
/visual_slam/tracking/odometry
/visual_slam/tracking/slam_path
/visual_slam/tracking/vo_path
/visual_slam/tracking/vo_pose
/visual_slam/tracking/vo_pose_covariance
/visual_slam/trigger_hint
/visual_slam/vis/gravity
/visual_slam/vis/landmarks_cloud
/visual_slam/vis/localizer
/visual_slam/vis/localizer_loop_closure_cloud
/visual_slam/vis/localizer_map_cloud
/visual_slam/vis/localizer_observations_cloud
/visual_slam/vis/loop_closure_cloud
/visual_slam/vis/observations_cloud
/visual_slam/vis/pose_graph_edges
/visual_slam/vis/pose_graph_edges2
/visual_slam/vis/pose_graph_nodes
/visual_slam/vis/slam_odometry
/visual_slam/vis/velocity

Reference links

This tutorial is based on the official NVIDIA Isaac ROS documentation. More information about configuring VSLAM in the Nvidia ecosystem can be found at the following pages:
